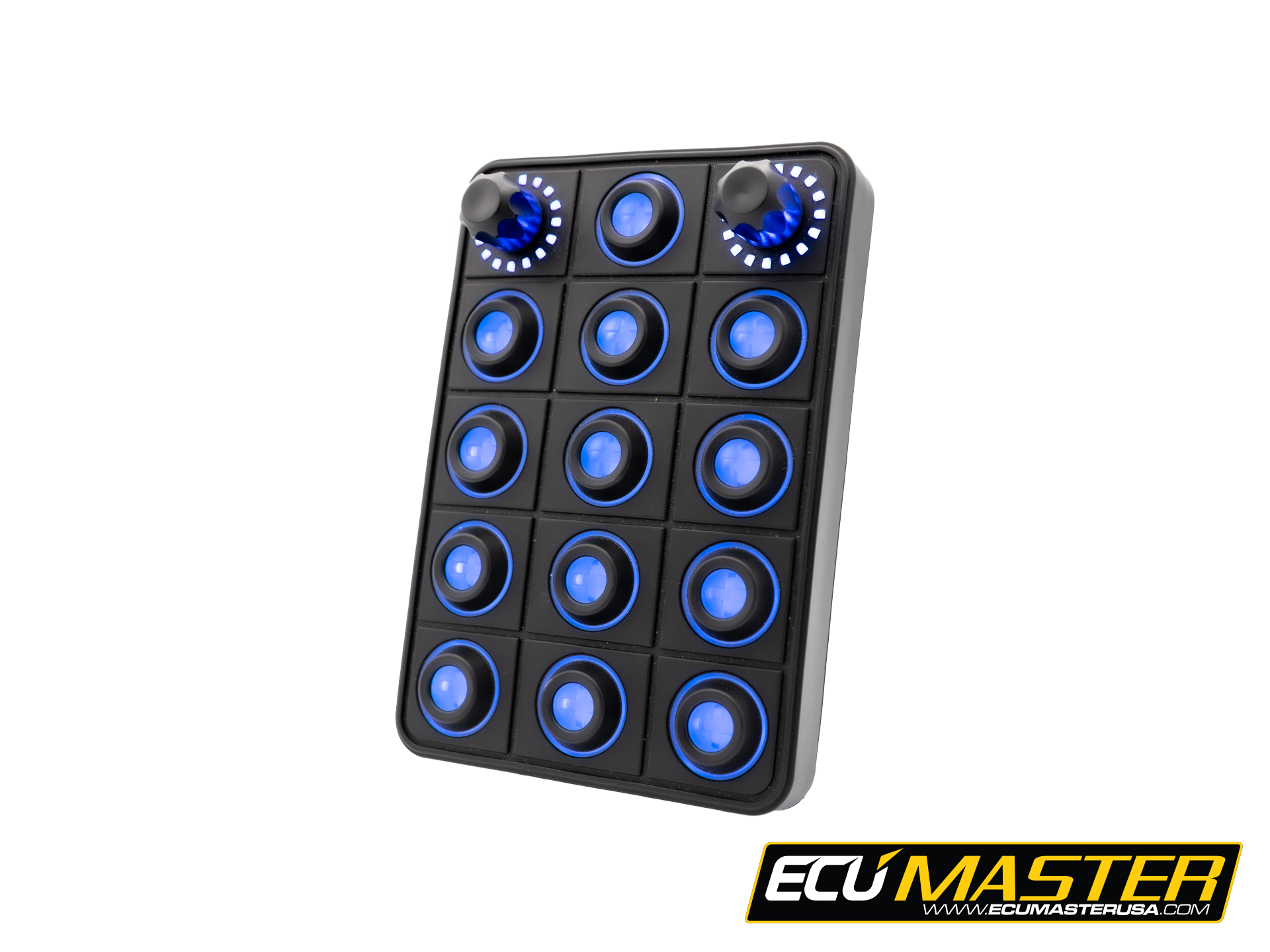

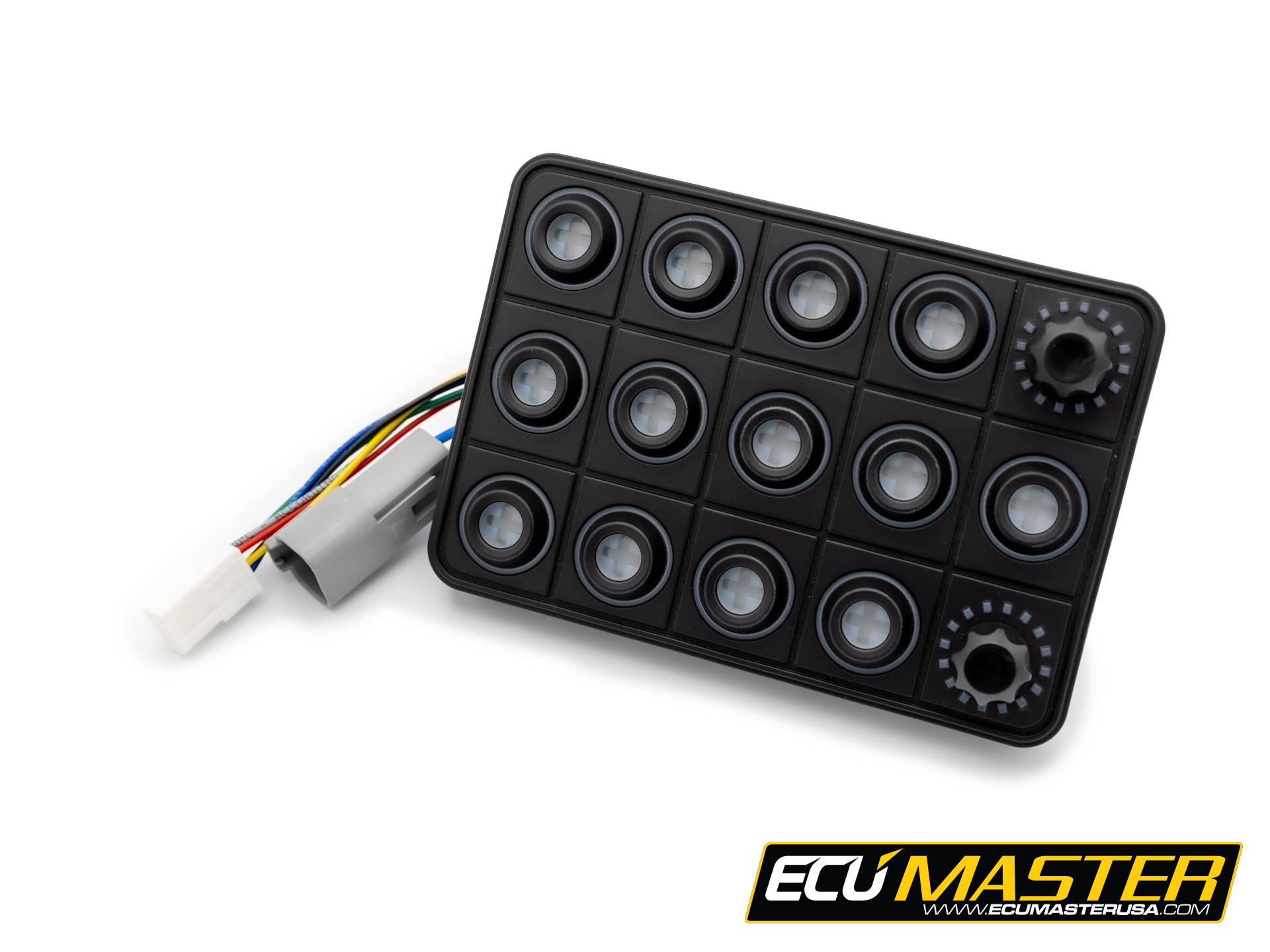

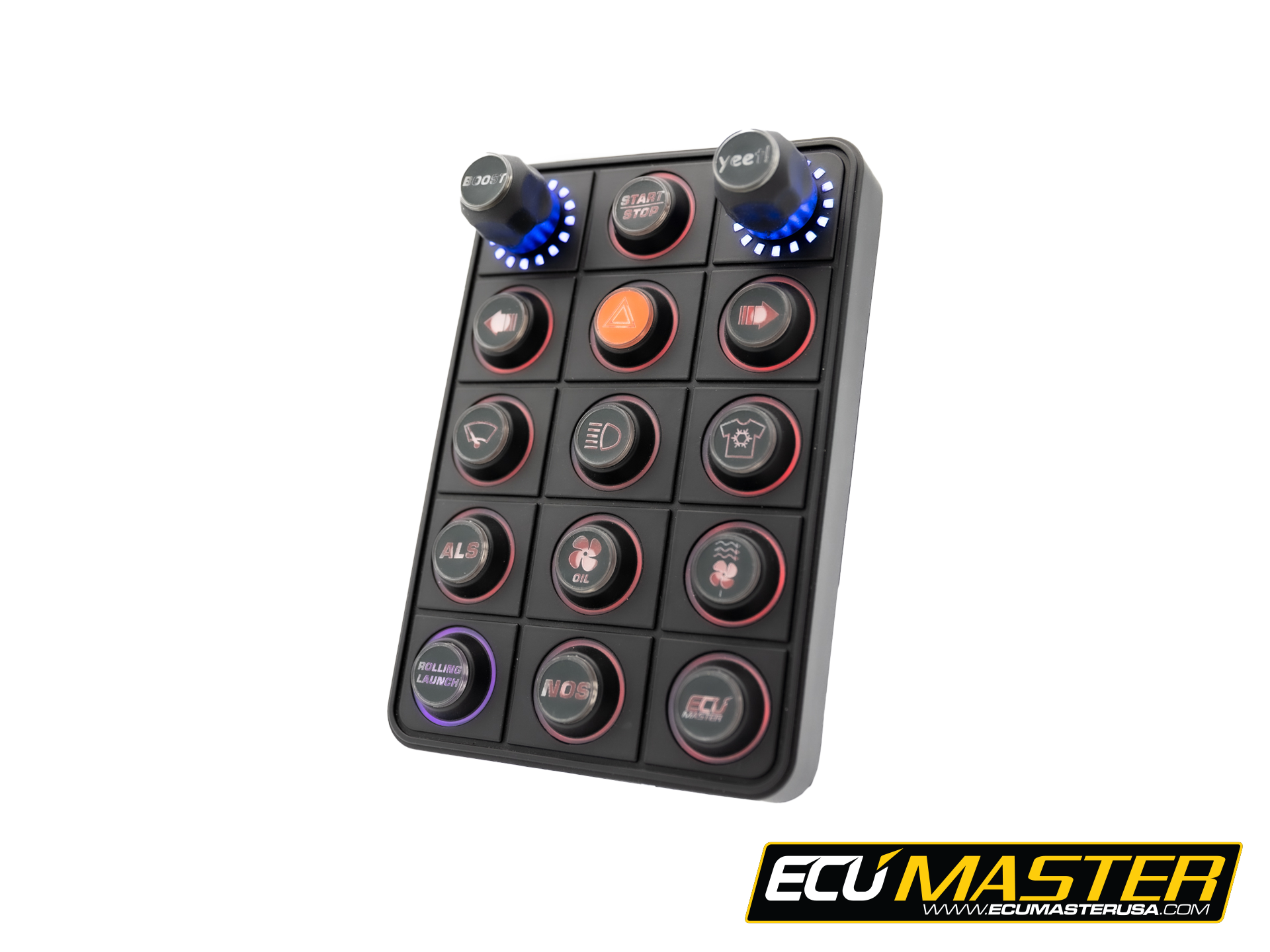

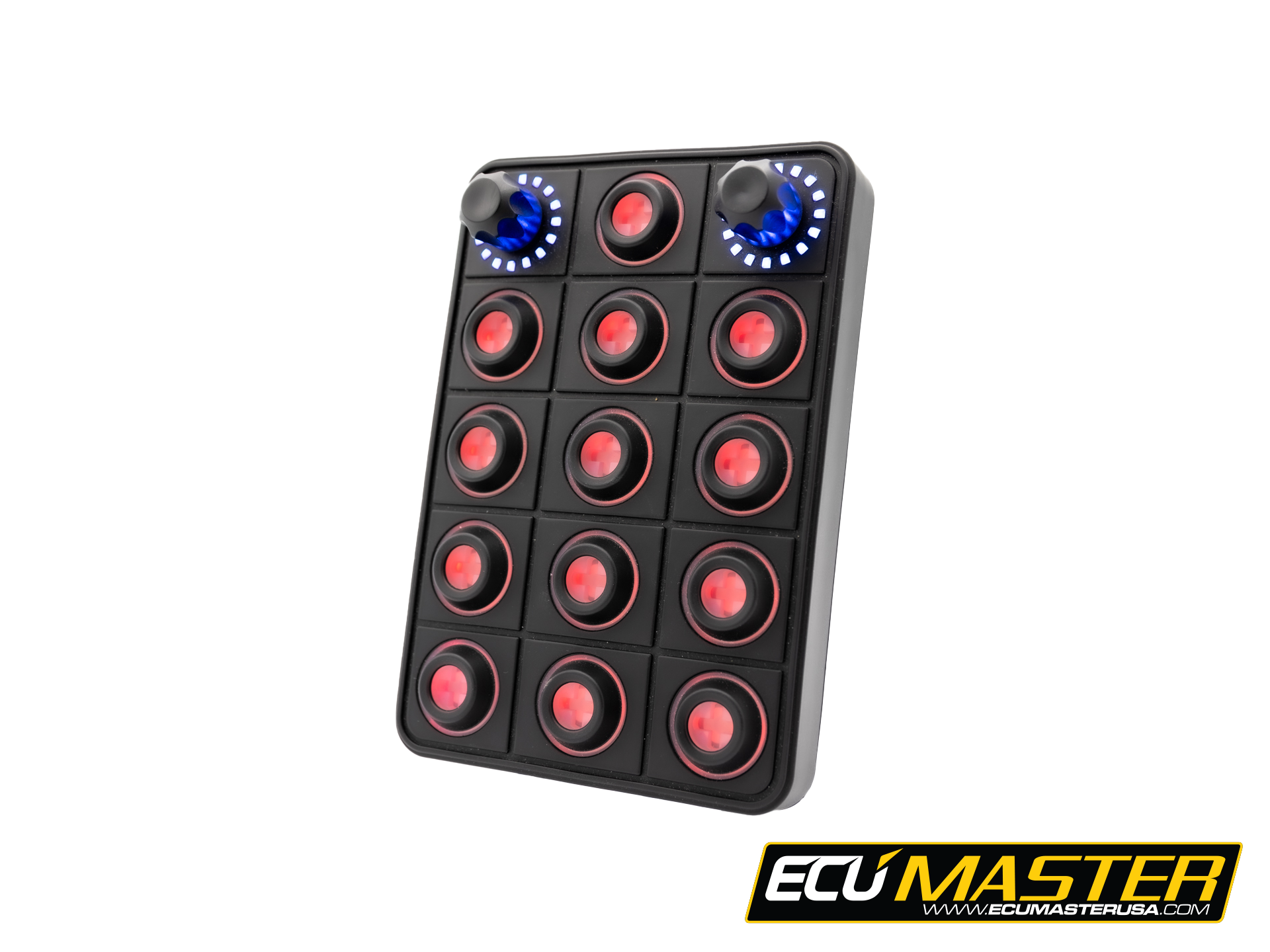

The 15-Position CAN Keyboard offers drivers control of key EMU, PMU, and ADU functions. Designed to withstand the harshest conditions, ECUMaster CAN Keyboards are completely immune to water, mud, and fuel. They also provide a satisfying click, giving gloved racing drivers tactile feedback when in use.
CAN keyboards offer a significant simplification and reduction of wiring compared to traditional switch panels, requiring only 4 wires for the entire keyboard. Built-in LEDs can be programmed to indicate button states (RGB) and also serve as backlighting for the keyboard.
Thirteen buttons and two rotary encoders, which also have button functionality, take your control options to new heights. Individual button and encoder behavior is fully configurable in the client software. Thanks to a unique system of interchangeable key inserts, it is easy to rearrange the keypad layout using the included inserts and sticker sheet.
Key Features
- CAN bus keyboard compatible with all ADU, EMU and PMU devices
- (4) Analog inputs (Download DBC file below)
- 125kbps, 250kbps, 500kbps, 1Mbps CAN bus speeds supported (500kbps default)
- Full customization possible
- IP67 rated

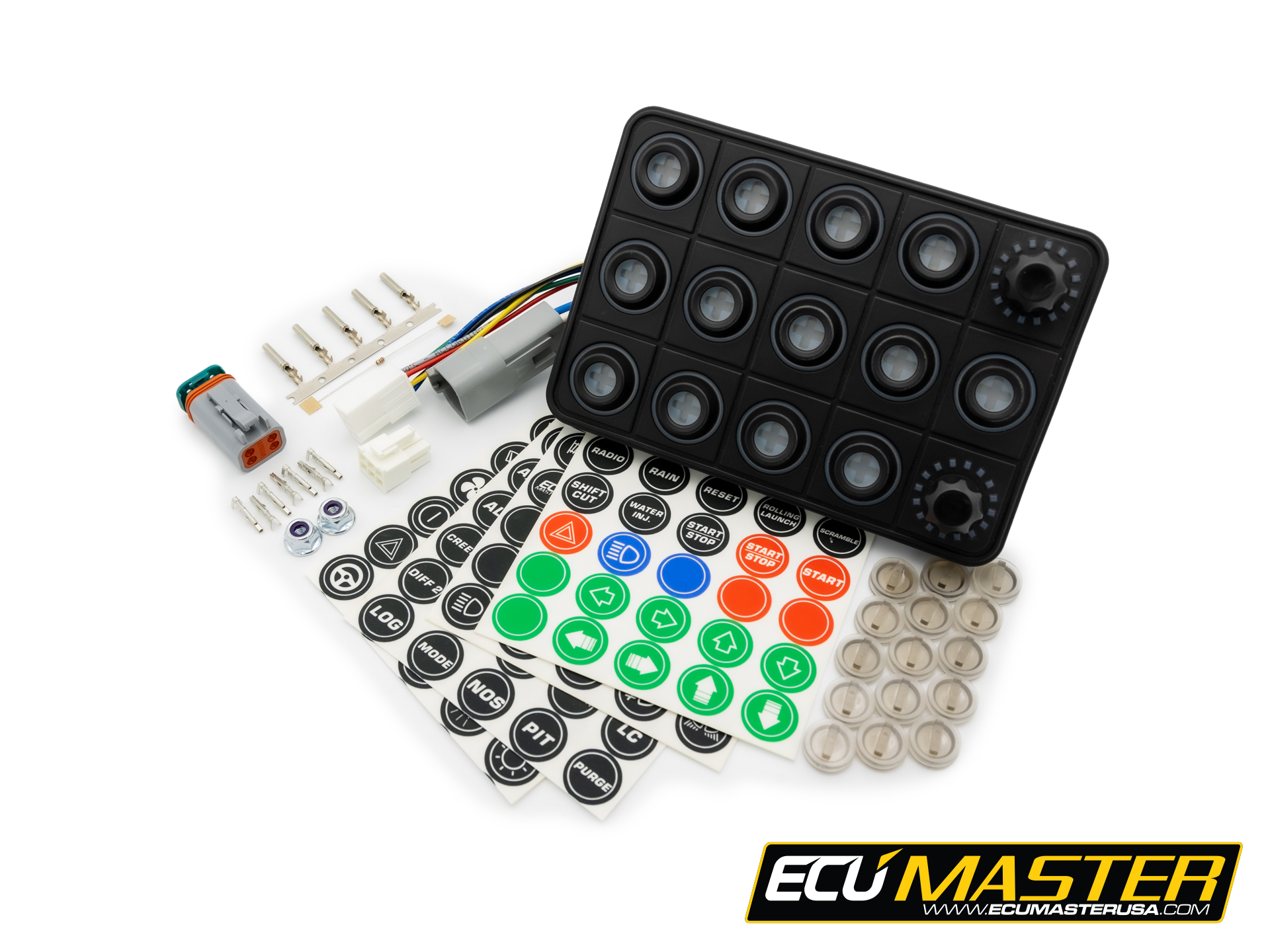

What's Included
- 1x 15-Position CAN Keyboard

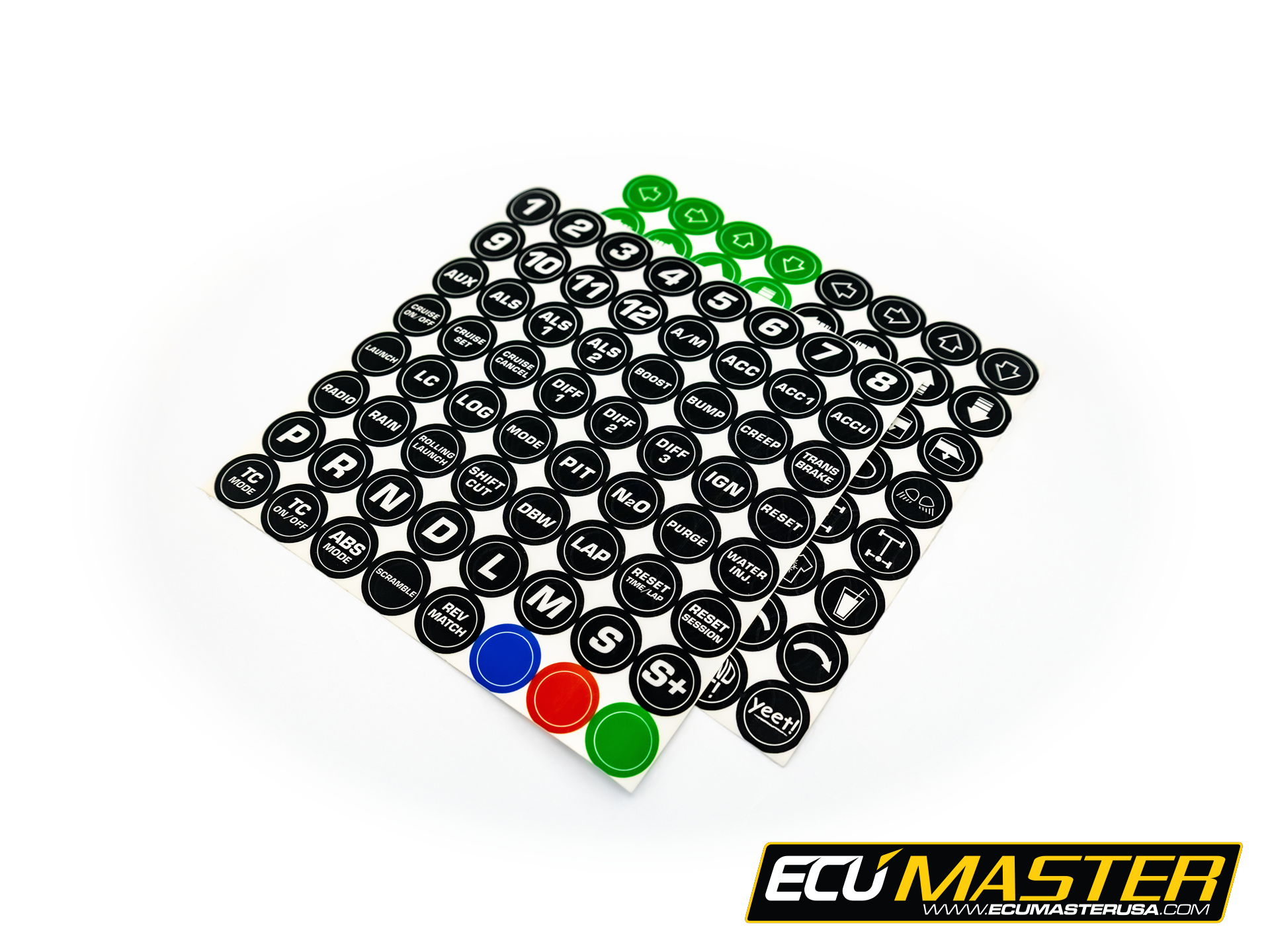

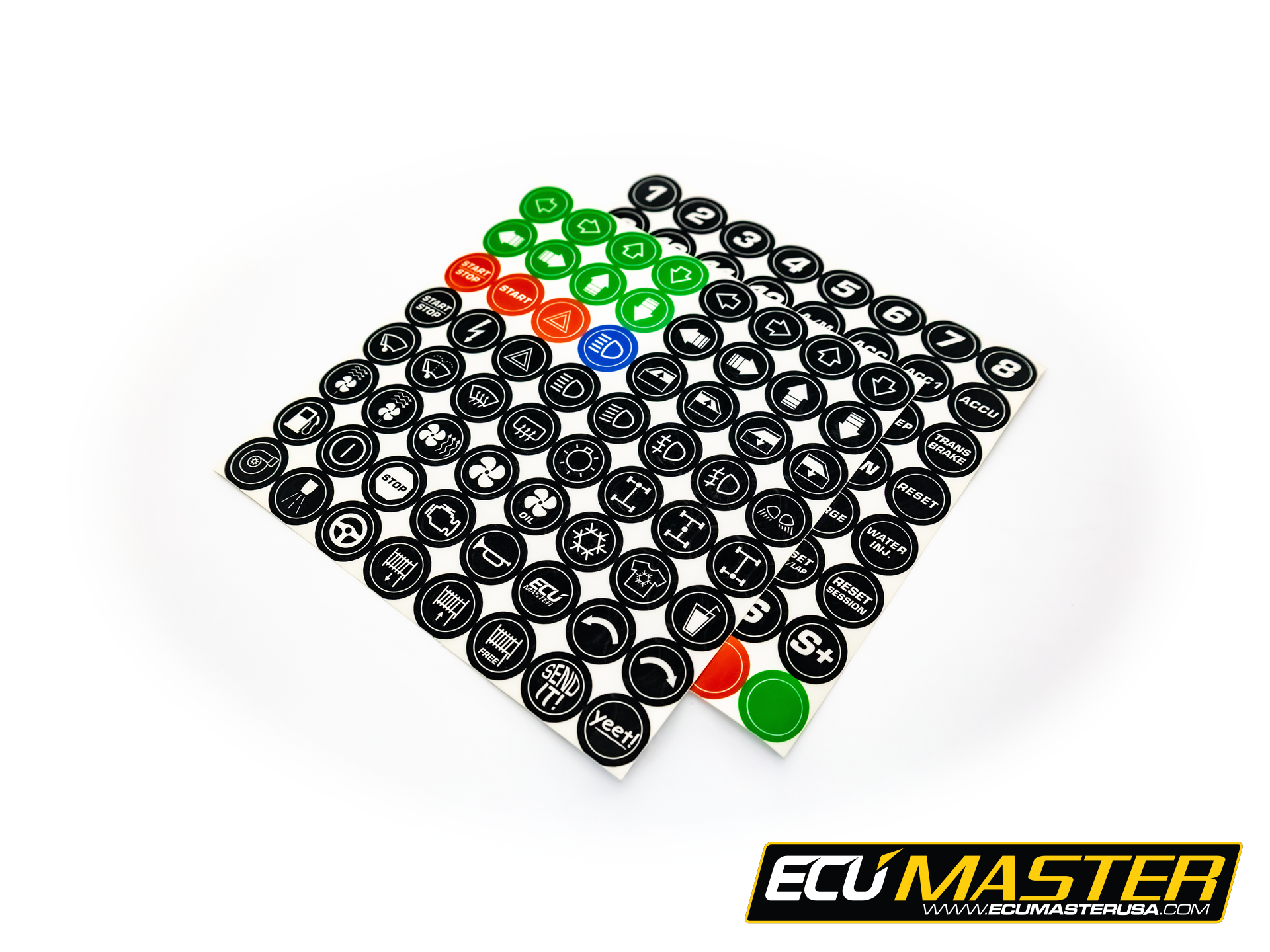

- 1x Label Sheet
- 15x Clear Button Blanks
- 2x 10-32 Nyloc Nuts
- 1x 4-Position DT Male Connector w/Lock
- 5x DT Terminals
- 1x 6-Position Molex Connector
- 7x Molex Terminals
- 1x 120Ω Terminating Resistor
Compatibility:
- EMU PRO firmware 111.0 or newer
- ADU firmware 101.00 or newer
- PMU firmware 101.00 or newer
Simplify your wiring and enhance your control. Order your 15-Position CAN Keypad today and experience ultimate control customization and durability!
Additional Documents
Pinout and Dimension Information
5x3 CAN Analog 1-4 DBC file
