ECUMaster Wireless Racing Panel Kit

ECUMaster
ECURFKIT
Many in stock
$570.00
Create your own wireless steering wheel switch panel with this new kit from ECUMaster! While ECUMaster...
$570.00

ECUMaster Wireless Racing Panel Kit

Please note:

Some ECUmaster products may ship directly from ECUmaster USA if not currently in our warehouse. This can cause slight shipping delays. If you need an item quickly, just contact us—we’re happy to check stock for you.

Create your own wireless steering wheel switch panel with this new kit from ECUMaster! While ECUMaster does offer a ready to go wireless steering wheel panel in a bespoke carbon fiber housing there is not always a one size fits all solution for everyone. This kit allows you to create your own wireless switch panel with up to 8 switch/button inputs, 4 rotary switch inputs (8 positions), and 2 paddle shift inputs.

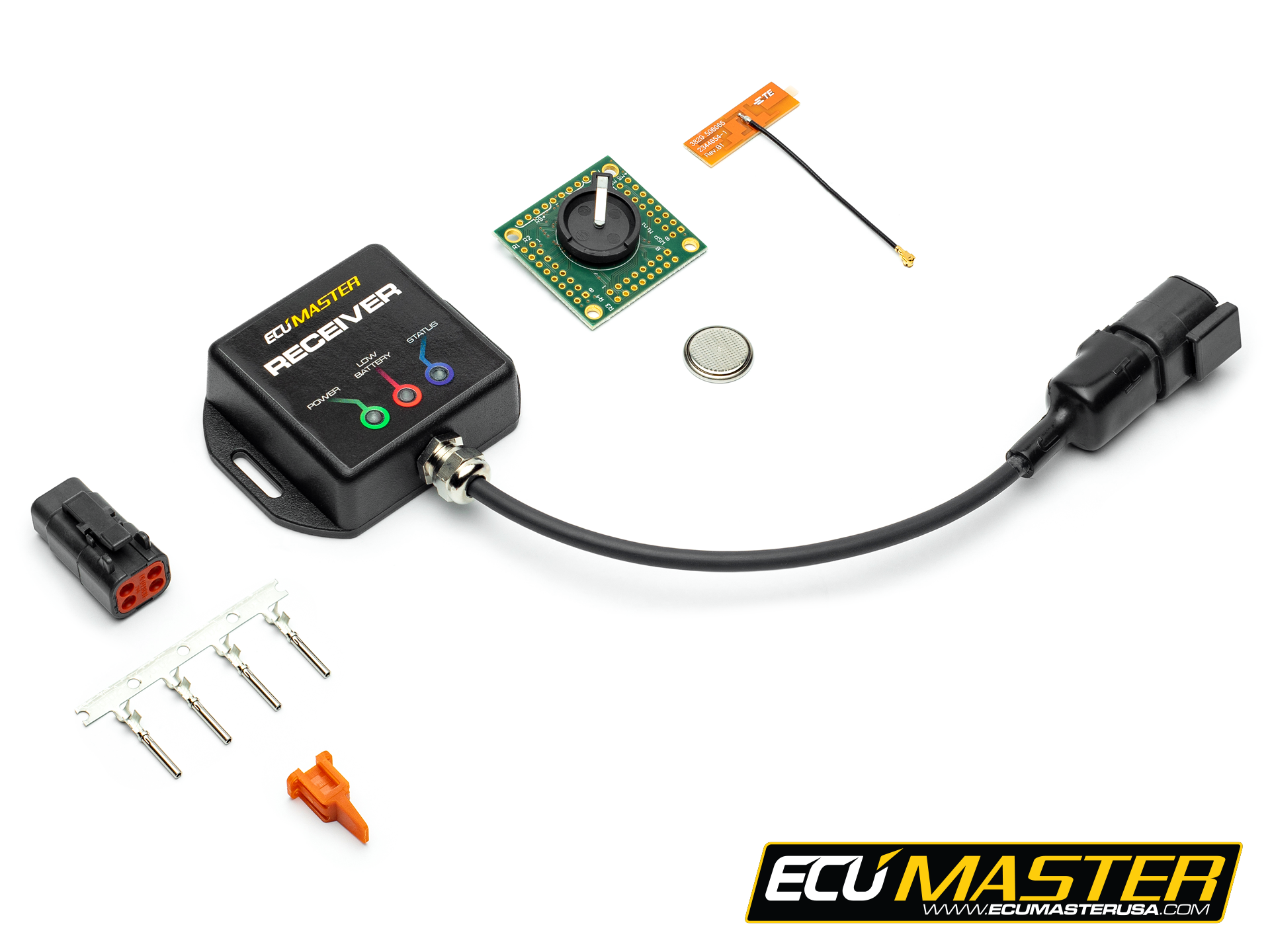

What's in the Box:

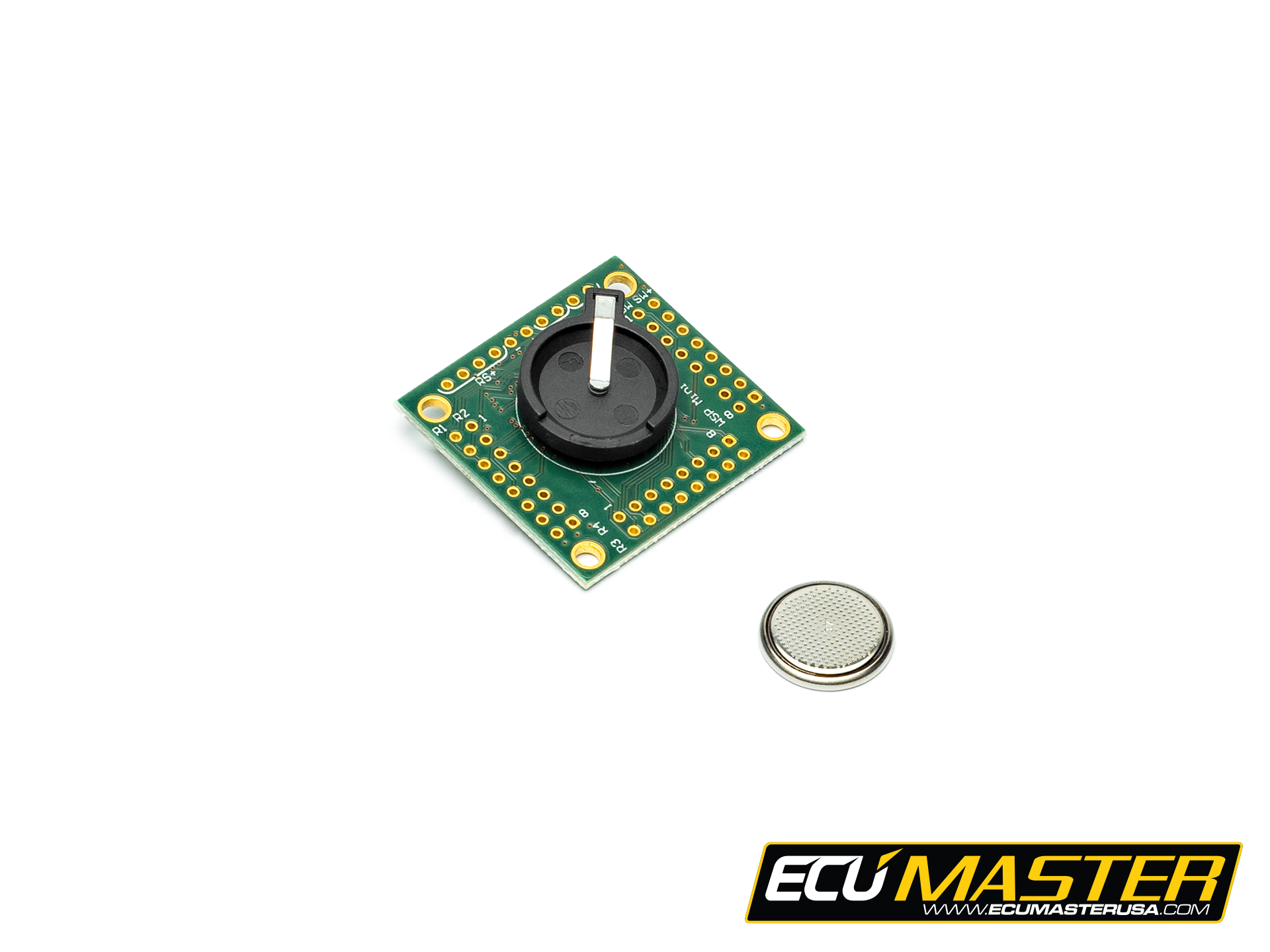

  • Transmitter (PCB)
  • Battery for transmitter
  • Antenna for transmitter
  • RF Receiver
  • RF Receiver mating connector with terminals

RF Steering Wheel Kit specification:

  • Temperature range AECQ GRADE3 (-40°C to +85°C)
  • Battery type CR1620 (included) - Possible to connect external battery pod to extend battery life
  • Wireless communication Radio Frequency
  • Frequency range 2360 MHz to 2500 MHz
  • Estimated battery life 260 days at rest at room temperature or 150,000 switches
  • Weight 10 g

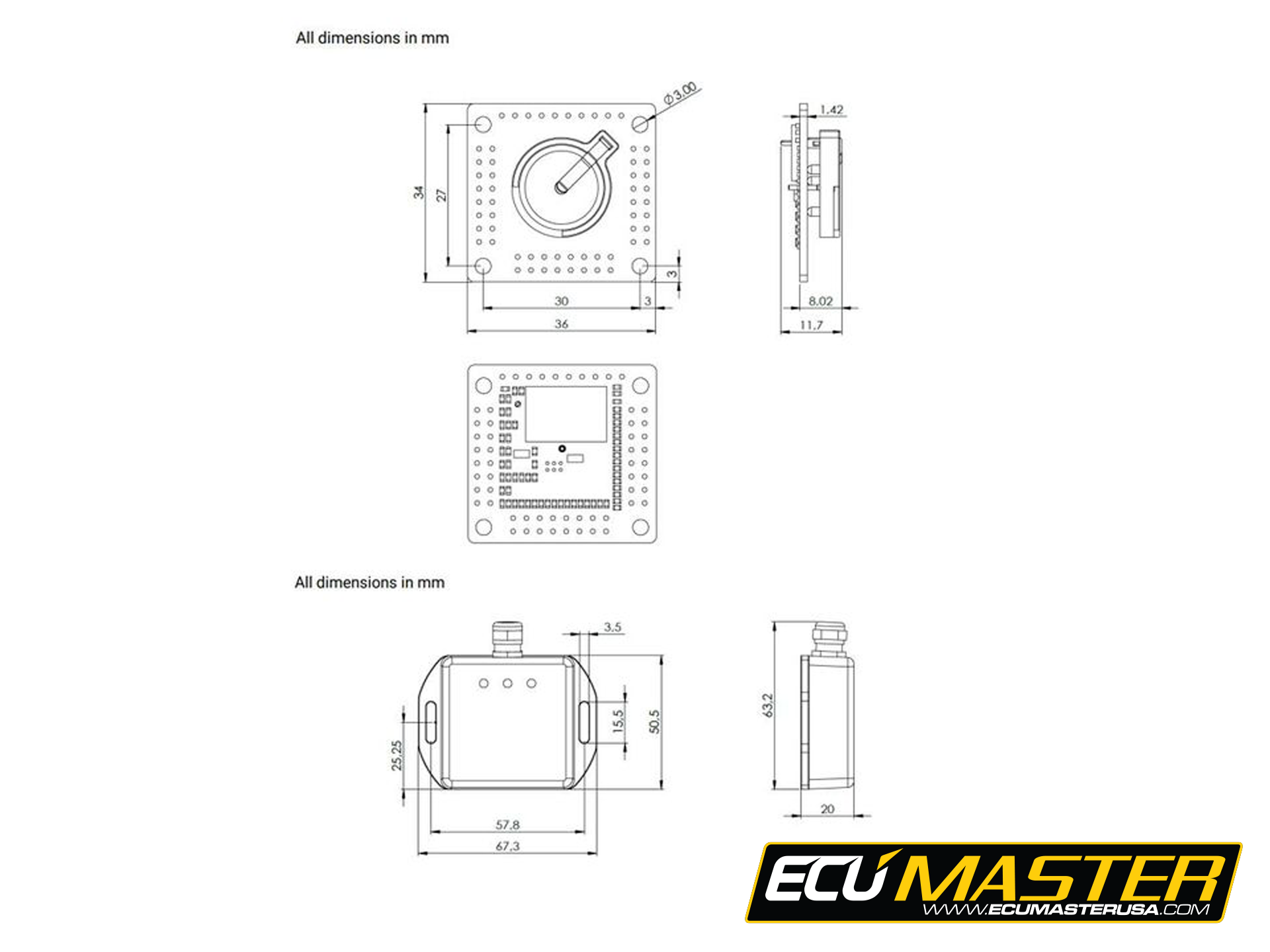

  • Dimensions 36 x 34 x 12 mm
  • Mounting mechanism 4 screws with a diameter of 3 mm
  • Latency Below 20 ms
  • Button inputs 8 with customizable functions (not included)
  • Rotary switch inputs 4 with eight positions and customizable functions (not included)
  • 2 Paddle shift inputs, paddle shifters (not included)
  • Range (line of sight) 100 m at highest power setting
  • Power levels 7
  • Power range from -20 dBm to 4 dBm depending on power level selected

RF Receiver Specification:

  • Temperature Range AECQ GRADE3 (-40°C to +85°C)
  • Operating Voltage 6-22 V, immunity to transients according to ISO 7637
  • CAN CAN 2.0 A/B – 125, 250, 500, 1000 kbps
  • Dimensions 68 x 50 x 20 mm
  • Weight 50 g
  • Connector Deutsch DTM04-4P (terminal included)
  • Cable length 20 cm
  • Mounting mechanism 2 x M3 bolts
  • Number of supported RF Steering Wheel Kits Up to 8

Additional Documents:

RF Steering Wheel Kit Manual
